Ranger Raptor
Get to know the Ranger Raptor
Inspired by desert racing, Ranger Raptor has been developed by the Australian design and engineering team with Ford Performance DNA for true enthusiasts.
Choose Your Raptor
Ranger Raptor
10-Speed Automatic
3.0-litre V6 Twin-Turbo EcoBoost
Double Cab Pick-up
FOX 2.5" Live Valve internal bypass shock absorbers
Unique ‘F-O-R-D’ block letter Grille
Matrix LED headlamps with LED daytime running lamps
12.4-inch Customisable Digital Cluster

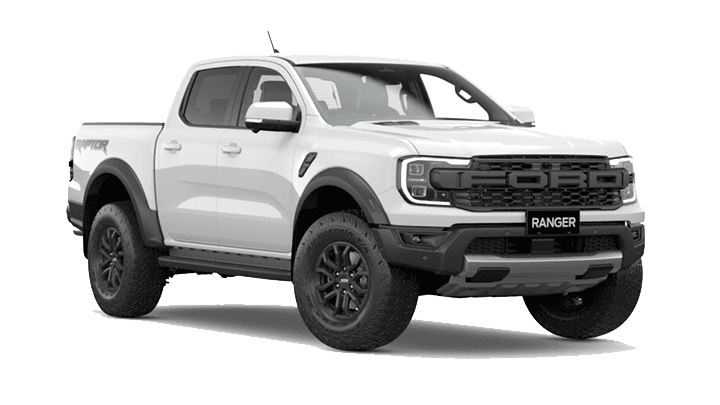

Available Colours
Artic White
Here’s a few things
to get excited about

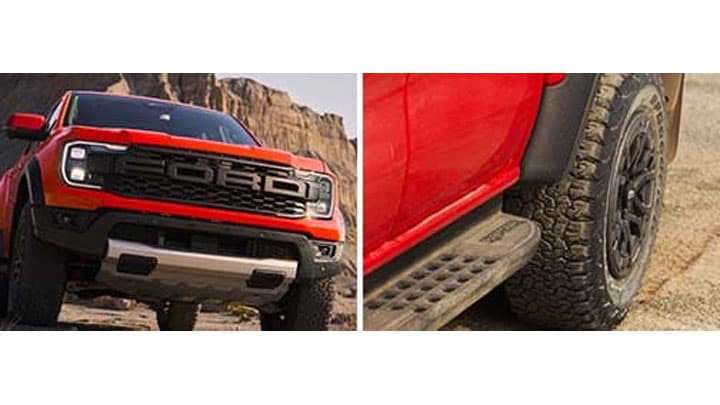

Performance Exterior
The highly capable Ranger Raptor features Built Ford Tough design. Emphasising the width of the pick-up are flared wheel arches, signature C-Clamp Matrix LED Headlamps with LED DTRLs and bold F-O-R-D lettering on the grille. This is what a high-performance off-roader looks like.
3.0L V6 Twin-Turbo EcoBoost Engine
The 3.0L V6 Twin Turbo EcoBoost engine produces up to 292kW at 5650rpm and 583Nm of torque at 3500rpm1. Mated to a performance tuned 10-speed automatic transmission with an anti-lag system available in Baja Mode2 enabling rapid delivery of boost on demand. The engine is made from the same high-performance material Ford uses in its NASCAR racing engines.
The most powerful Ranger we've ever built
Selectable Drive Modes3
Ranger Raptor is loaded with seven selectable drive modes3, for on and off-road. Go from rock crawling or desert running to the highway with the turn of a dial.

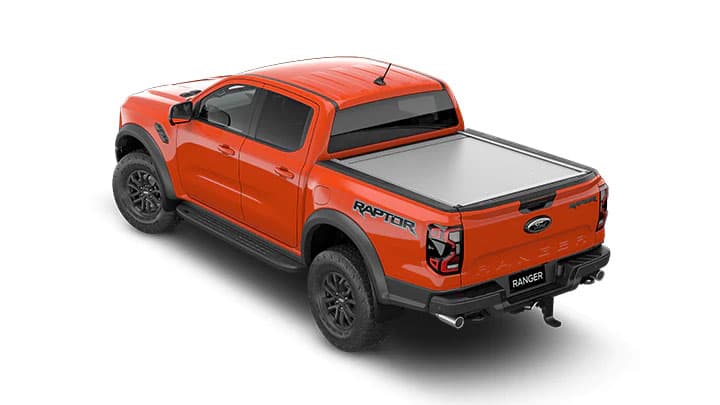

Power Roller Shutter4
Available as a factory fit option on Raptor, the power-operated roller shutter offers improved security and protection from the elements, easily operated from the key fob, dash or inside the tray.

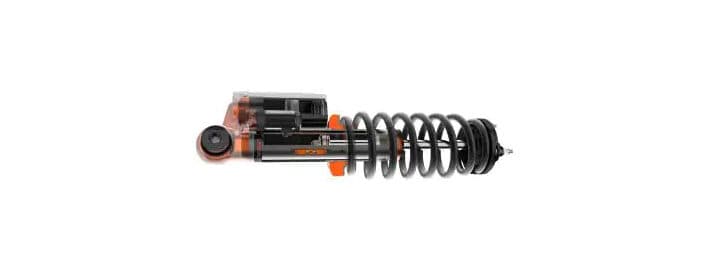

FOX 2.5” Live Valve Internal Bypass Shock Absorbers
State-of-the-art internal bypass dampers adjust electronically up to 500 times a second, reacting to the unfolding terrain and your driving style. Get ready for the off-road ride of your life.

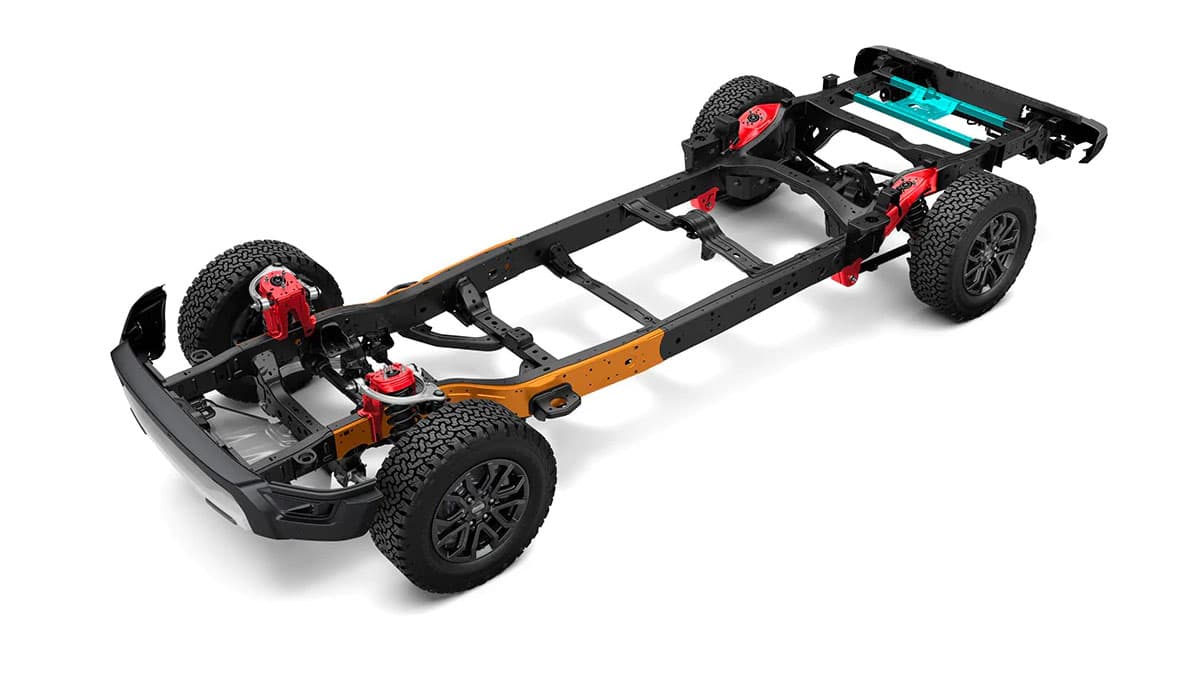

Built Ford Tough DNA
Ranger Raptor has a reinforced chassis. New shock tower mounts, 33-inch tyres, unique upper and lower control arms and a Watt’s link equipped coil-spring rear suspension mean this Raptor is the toughest and most capable Ranger Raptor yet.
Interior Design
Front And Rear

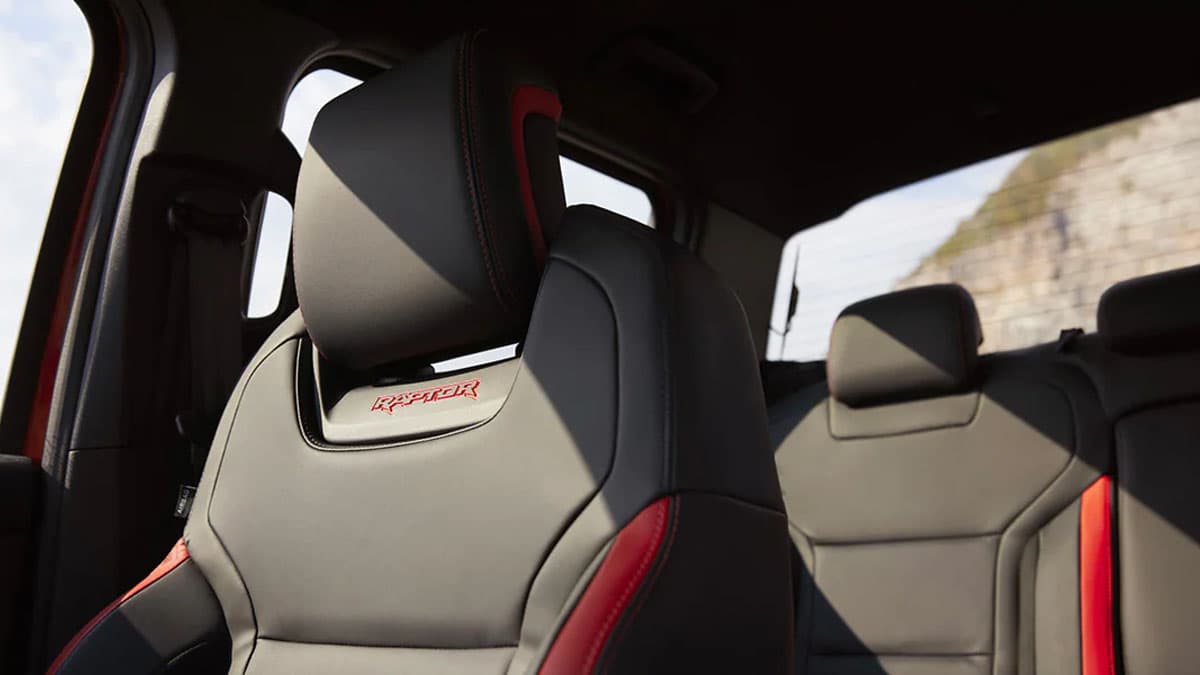

Performance Seats
The cabin features all-new, jet fighter-inspired sports seats both in the front and rear with prominent bolstering that is more comfortable and supportive during spirited cornering.
Enhance Your Visibility
From the large centre display choose from multiple camera views to see more than
ever. This includes a bird’s eye 360-degree3 top-down view and rear trailer hitch view.
Ranger Raptor
Artic White
Ranger Raptor Specs
Power
Output
292kW @ 5,650 rpm1
583Nm @ 3,500 rpm1
Engine
3.0-litre V6 Twin-Turbo EcoBoost
Transmission
10-Speed Automatic
Capability
Shocks
Ford Performance developed FOX 2.5” Live Valve internal bypass shock absorbers
Differentials
Electronically Controlled Front & Rear Locking
Selectable Drive Modes
– Normal
– Sport
– Slippery
– Mud/Ruts2
– Sand2
– Baja2
– Rock Crawl2
Selectable Steering Modes
– Normal
– Comfort
– Sport
– Off-Road
Selectable Damper Modes
– Normal
– Off-Road
– Sport
Selectable Exhaust Modes
– Quiet
– Normal
– Sport
– Baja2
My Mode
Allows drivers to select preferred Drive, Steering, Damper & Exhaust mode with one button
Trail Control™3
“Cruise Control” for off-road. Helps maintain consistent speeds when traveling up or down terrain
Wheels & Tyres
17” Alloy, LT285/70 R17 BF Goodrich KO2 High Performance All-Terrain tyres
Brakes
Front and rear vented discs with electronic Brake Booster
Drive Type
4WD drivetrain
Towing Capacity
2,500kg4
Water Wading
850mm5
Exterior
Front
– Unique ‘F-O-R-D’ block letter Grille
– Matrix LED headlamps with LED DTRLs
– Front Bash Plate (2.3mm-thick steel)
– LED front fog lamps
– Dual tow hooks
Rear
– Rear bumper with integrated step pad and towbar
– LED taillamps
– Rear tow hooks
– Optional Factory Fit Power Roller Shutter6
Side
– Precision Grey wheel arch extensions
– Precision Grey functional fender vents
– ‘FORD’ Block lettering wheel centre caps
– Black Powder coated die-cast aluminum side steps
Interior
Centre Display
12-inch Centre Mounted Portrait Touchscreen with SYNC®4A7 Wireless Apple CarPlay™ & Android Auto™8
Instrument Cluster
12.4-inch Customisable Digital Cluster
Steering
– Selectable Drive Modes
– Paddle Shifters
Seats
Ford Performance Seats embossed with “Raptor” logo & “Code Orange” accented stitching
Technology
Headlamps
Matrix LED
Cameras
360-Degree Camera
Zone Lighting11
Exterior zone lighting with FordPass™9 compatibility
More
– eShifter & Electric Park Brake
– Wireless charging pad10
– Auxiliary switch bank
– FordPass™9
